| 荷载 | 类型 | 起升速度M/MIN | 电机功率 | 载重链条数 | 链条规格 | 净重 |
| 0.5t | PE005S | 7.8 | 0.8 | 1 | 6.3*19 | 47 |
| 1t | PE010S | 6.6 | 1.5 | 1 | 7.1*21 | 61 |
| PE010L | 3.3 | 0.8 | 2 | 6.3*19 | 52 | |
| 1.5t | PE015S | 8.8 | 3.0 | 1 | 10*30 | 108 |
| 2t | PE020S | 6.6 | 3.0 | 1 | 10*30 | 115 |
| PE020L | 3.3 | 1.5 | 2 | 7.1*21 | 73 | |
| 2.5t | PE025S | 5.4 | 3.0 | 1 | 11.2*34 | 131 |
| 3t | PE030S | 5.4 | 3.0 | 1 | 11.2*34 | 115 |
| PE030L | 4.4 | 3.0 | 2 | 10*30 | 122 | |
| PE033L | 2.2 | 1.5 | 3 | 7.1*21 | 131 | |
| 5t | PE050S | 2.7 | 3.0 | 2 | 11.2*34 | 151 |

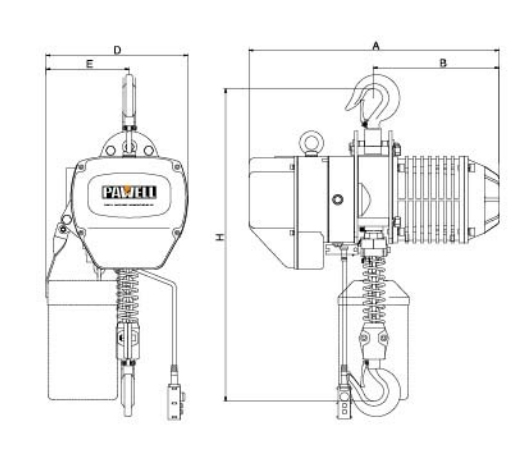

| 类型 | H | A | B | D | E |
| PE005S | 530 | 460 | 230 | 288 | 178 |
| PE010S | 650 | 520 | 260 | 300 | 176 |
| PE010L | 670 | 460 | 230 | 288 | 178 |
| PE015S | 800 | 615 | 295 | 430 | 265 |
| PE020S | 800 | 615 | 295 | 430 | 265 |
| PE020L | 835 | 520 | 260 | 300 | 236 |
| PE025S | 845 | 615 | 295 | 430 | 265 |
| PE030S | 845 | 615 | 295 | 430 | 265 |
| PE030L | 950 | 615 | 29 | 430 | 320 |
| PE033L | 950 | 520 | 260 | 350 | 205 |
| PE050S | 1030 | 615 | 295 | 430 | 325 |
